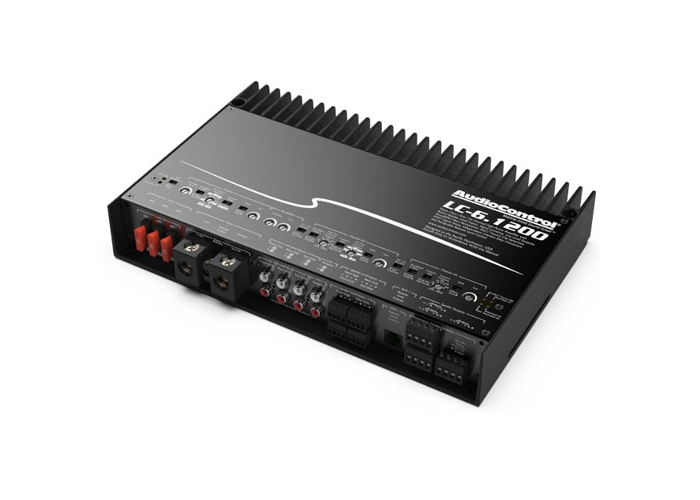

AudioControl LC Series 6 Channel Active LOC w/LC8i

Check out the AudioControl LC Series 6 Channel Active LOC w/LC8i's Key Features
(AudioControl ACLC61200)

• Genuine AudioControl Australian Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Configurable as 6/5/4/3/2 channel amplifier
• 6 x 200 watts @ 2 ohms
• 6 x 125 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS® Processing
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• 3-way Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6 preamp inputs
• 2 assignable preamp outputs
• PFM Subsonic Filter
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Overview

LC Series Amplifiers

With OEM integration friendly features such as signal summing and our patented AccuBASS®, AudioControl’s multi-channel and subwoofer amplifiers are changing the game in OEM integration, offering flexible and user friendly signal routing and control. Spend less time on the install and more time listening to music as it was meant to be heard.

LC-6.2100 High-Power Multi Subwoofer Amplifier with Accubass

Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO Signal Sense, MILC Source Clip Detection and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.

Features

Inputs

• Preamp Inputs: 6 balanced
• Preamp Input Voltage Range: 250 mV – 8 V RMS
• Speaker Level Inputs: 8

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 125 W x 6 RMS
  • 2 Ω – 200 W x 6 RMS
  • Bridged 4 Ω – 400 W RMS
• Preamp Outputs: 2
• Maximum Preamp Output: 8.5 V RMS

Performance

• Frequency Response: 10 Hz – 30 kHz
• Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
• THD+N: < 0.1%
• Minimum Power / Ground Wire Gauge: 3 AWG wire
• Fuse Rating: 3 x 40 A
• Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weights & Dimensions

• Dimensions: 12″W x 8.0″D x 2.1″H
• Weight: 7.2lbs. (3.3kg)

In the box

• LC-6.1200
• Speaker Connectors
• Fuse
• Manual
• Warranty
