AudioControl LC Series 6 Channel Active LOC w/Accubass

Check out the AudioControl LC Series 6 Channel Active LOC w/ Accubass's Key Features
(AudioControl ACLC7I)

• Genuine AudioControl Australian Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Six channels of active speaker level inputs – accepts up to 400 watts per channel
• Patent Pending AccuBASS™ circuitry
• Optional ACR-1 Remote allows for user control of the subwoofer level
• Internal Channel Summing – For interfacing with factory installed amplifiers with built-in crossovers
• GTO™ (Great Turn-On) Circuit – Powers up the LC7i when it detects signal on the speaker level input
• Output level control
• Compact chassis allowing for ease of installation

Overview

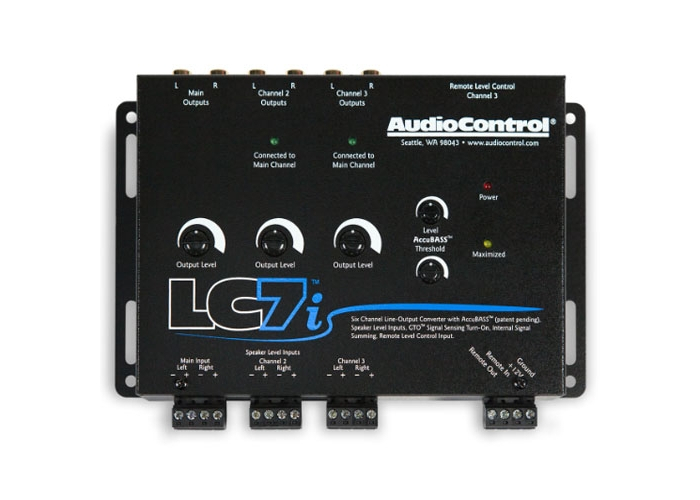

LC 7i 6 channel line out converter with Accubass

The AudioControl LC7i, six channel active line converter, allows all music lovers, who want a great in-car audio experience, to keep their factory installed source unit and dramatically improve their system performance. The LC7i delivers amazing sound quality and fixes one of the biggest letdowns of today’s factory systems, weak BASS!

Designed for maximum sound quality and enhanced audio performance, the LC7i incorporates AccuBASS™. This patented process automatically corrects for the bass roll-off that is common with many factory-installed audio systems and AudioControl’s unique and exclusive AccuBASS™ circuitry maintains and restores the Bass as the volume is turned up, improving the audio performance.

The LC7i allows the flexibility of powering the audio signals downstream to single or multiple factory amps maximizing sound quality & achieving high output at a great price. In addition, the LC7i is designed to fit into a compact chassis allowing an easy & flexible factory system upgrade in today’s space constrained vehicles. The ACR-1 dash remote (sold separately) allows the user to control the level of the low frequency output.

Features

Inputs

• Speaker Level Input: 3 (6 channels)
• Maximum Speaker Level Input: 400W per channel at 4Ω
• Input Impedance: 20kΩ

Outputs

• Preamp Outputs: 3 (6 channels)
• Maximum Output Level: 8.5Vrms
• Output Gain: ±12dB
• Output Impedance: 150Ω

Performance

• Total Harmonic Distortion: 0.01%
• Frequency Response: 10 Hz to 22 kHz

Control

• Remote In
• 12VDC Remote Out (always active when unit is on)

General

• Power Supply: High Headroom PWM Switching
• Current Draw: 350mA
• Recommended Fuse Rating: 2A

Weights &Dimensions

• Dimensions: 7.5"W x 4.7″D x 1.2″H
• Weight: 1.5lbs (0.7kg)

In The Box:

• LC7i
• Speaker and Power connectors
• Manual
• Warranty

Inputs

• Speaker Level Input: 3 (6 channels)
• Maximum Speaker Level Input: 400W per channel at 4Ω
• Input Impedance: 20kΩ

Outputs

• Preamp Outputs: 3 (6 channels)
• Maximum Output Level: 8.5Vrms
• Output Gain: ±12dB
• Output Impedance: 150Ω

Performance

• Total Harmonic Distortion: 0.01%
• Frequency Response: 10 Hz to 22 kHz

Control

• Remote In
• 12VDC Remote Out (always active when unit is on)

General

• Power Supply: High Headroom PWM Switching
• Current Draw: 350mA
• Recommended Fuse Rating: 2A

Weights &Dimensions

• Dimensions: 7.5"W x 4.7″D x 1.2″H
• Weight: 1.5lbs (0.7kg)

In The Box:

• LC7i
• Speaker and Power connectors
• Manual
• Warranty

What'S In The Box:

• LC7i
• Speaker and Power connectors
• Manual
• Warranty
