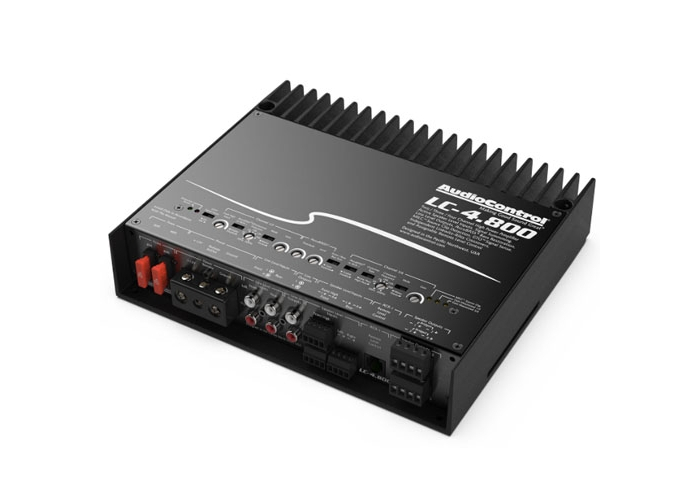

AudioControl LC Series 4 Channel Active LOC w/LC7i

Check out the AudioControl LC Series 4 Channel Active LOC w/LC7i's Key Features
(AudioControl ACLC4800)

• Genuine AudioControl Australian Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• Configurable as 4/3/2 channel amplifier
• 4 x 200 watts @ 2 ohms
• 4 x 125 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS® Processing
• MILC™ Maximum Input Level Control (Patent Pending)
• GTO™ Signal Sense
• Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (6 channels) for OEM integration
• 4 preamp inputs
• 2 assignable preamp outputs
• PFM Subsonic Filter
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Overview

LC Series Amplifiers

With OEM integration friendly features such as signal summing and our patented AccuBASS®, AudioControl’s multi-channel and subwoofer amplifiers are changing the game in OEM integration, offering flexible and user friendly signal routing and control. Spend less time on the install and more time listening to music as it was meant to be heard.

LC-4.800 High-Power Multi Subwoofer Amplifier with Accubass

“Making Good Sound Great” is our passion at AudioControl and that legacy continues with the LC-4.800 multi-channel amplifier.

This unique high power design features six active speaker level inputs with summing allowing you to interface and integrate with most factory installed source units. The patent pending AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO signal Sense, Configurable Crossovers and assignable remote level control. We have incorporated years of technology into the LC-4.800 making this a perfect solution based amplifier.

Features

Inputs

• Preamp Inputs: 4 balanced
• Input Voltage Range: 250 mV – 8 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 125 W x 4 RMS
  • 2 Ω – 200 W x 4 RMS
  • Bridged 4 Ω – 400 W RMS
• Preamp Outputs: 2
• Maximum Preamp Output: 8.5 V RMS

Performance

• Frequency Response: 10 Hz – 30 kHz
• Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
• THD+N: < 0.1%
• Minimum Power / Ground Wire Gauge: 3 AWG wire
• Fuse Rating: 2 x 40 A
• Crossover: Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz

Weights & Dimensions

• Dimensions: 9″W x 7.95″D x 2.1″H
• Weight: 5.0lbs (2.0kg)

In the box

• LC-4.800
• Speaker Connectors
• Fuse
• Manual
• Warranty
