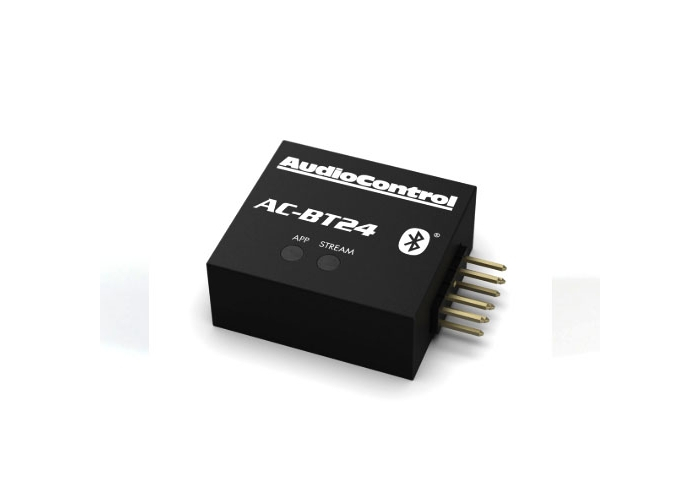

AudioControl AC-BT24 Audio Streamer & Programmer

Check out the AudioControl AC-BT24 Audio Streamer & Programmer 's Key Features
(AudioControl ACBT24)

• Genuine AudioControl Australian Warranty
• Peace of Mind Purchase Guarantee (bottom of page)
• High Definition Low-Latency Audio Streaming
• aptXTM HD Support
• 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
• Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
• Simultaneous Audio Streaming and DSP Programming

Overview

Bluetooth Streamer & Programmer

The AC-BT24 enables high definition Bluetooth® audio streaming (aptX HD support) and programming for AudioControl DSP products featuring the Option Port. Stream hires audio directly to the DM-810 and DM-608 DSP or the D-6.1200 DSP amplifier and program the DSP simultaneously. The AC-BT24 also allows for complete DSP setup and programming using the DM Smart DSP app for iOS and Android.

Option Port

The AC-BT24 connects to AudioControl products with the built-in Option Port, allowing high definition audio streaming directly into the DSP, as well as DSP set up and programming. The Option Port provides power to the AC-BT24 which can then be paired to your Bluetooth enabled phone or tablet.

Bluetooth

• Version: 4.2
• aptX HD Compatible
• UART Interface

Output

• Dual Differential Class AB Output Stage

Performance

• Signal to Noise Ratio: 96 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)

General

• Power Requirements: Provided by Option Port

Weights & Dimensions

• Dimensions: 1.4”L x 1.0”W x 0.5”H
• Weight: 0.3 oz (9 g)

In the box:

• AC-BT24,
• Quick Start Card
• Warranty

Bluetooth

• Version: 4.2
• aptX HD Compatible
• UART Interface

Output

• Dual Differential Class AB Output Stage

Performance

• Signal to Noise Ratio: 96 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)

General

• Power Requirements: Provided by Option Port

Weights & Dimensions

• Dimensions: 1.4”L x 1.0”W x 0.5”H
• Weight: 0.3 oz (9 g)

In the box:

• AC-BT24,
• Quick Start Card
• Warranty

In the box:

• AC-BT24,
• Quick Start Card
• Warranty
