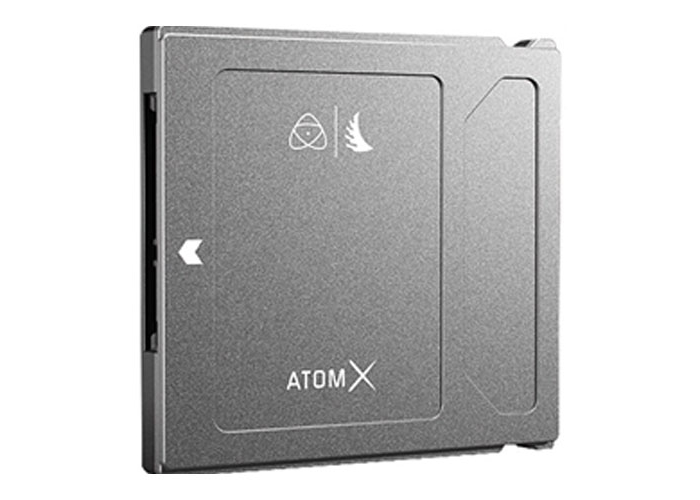

Name: AngelBird AtomX (1TB) SSD Mini Drive
Brand: Angelbird
SKU: ATOMXMINI1000PK
Price: 728.85 AUD
Availability: OutOfStock

Delivery and In-Store Pickup: As this product is located at an external warehouse delivery times may be delayed by up to 48 hours. In-store pickup may not be available on this item.

Check out the AngelBird AtomX (1TB) SSD Mini Drive Key Features
(ATOMXMINI1000PK)

Genuine Australian SmallRig Warranty
Peace of Mind Purchase Guarantee
Designed for Atomos Ninja V Monitor Recorder
20% Smaller than Average SSD
Up to 540MB/s Read Speed & 500MB/s Write Speed
Reliable & Tough Design

Overview

Angelbird’s AtomX SSDmini was custom made for the new Atomos Ninja V monitor recorder and is perfectly compatible with all the other available recorders. The AtomX SSDmini is 20 percent smaller than the average SSD (to fit the small footprint of the Ninja V), offers 500 GB and 1 TB of storage, has sustained read speeds of 540 MB/s and write speeds of 500 MB/s, captures CDNG up to 4K 30p, ProRes RAW HQ 5.7K up to 30p, plus 4K 60p and 2K 240p, sports a SATA III connector, and supports Stable Stream™ technology to never miss a frame.

View All Features

FORM FACTORSSDmini
Compatible with *

DIMENSIONS80.0 x 75.5 x 9.3 mm (3.15 × 2.97 x 0.37 in)

WEIGHT~ 90.0 g | ~ 3.2 oz

Performance

SEQUENTIAL READ SPEED¹560 MB/s
SUSTAINED READ SPEED¹540 MB/s

SEQUENTIAL WRITE SPEED¹520 MB/s
SUSTAINED WRITE SPEED¹500 MB/s

ACCESS TIME (R/W)~ 65 µs | 40 µs

Reliability

MTBF2,400,000 hours

DATA RELIABILITYBuilt-in EDC | ECC function

DATA RETENTION10 years at 25°

ENDURANCE

500 GB: up to 1,500 TBW
1 TB: up to 3,000 TBW
2 TB: up to 6,000 TBW

CERTIFICATIONSRoHS, CE and FCC compliant, REACH

Electrical

DC INPUT VOLTAGE5 V ± 10 %

POWER USAGE (IDLE/MAX)

500 GB: 0.35 W / 3.0 W
1 TB: 0.35 W / 3.5 W
2 TB: 0.35 W / 3.5 W

Technical

INTERFACESATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported,
SATA 3.0 compliant

OVER PROVISIONING~ 9 %

FEATURESTemperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ

Environmental

SHOCK RESITANCE (OPERATING)1000 G/0.5 ms

VIBRATION RESISTANCE (OPERATING)2.17 GRMS

OPERATING TEMPERATURE-20 °C | 70 °C

STORAGE TEMPERATURE–40 °C | 85 °C

OPERATING HUMIDITY5 % to 95 % non-condensing

*Compatibility list

Supported codecs

4k60p 2k240p Apple ProRes / Avid DNx
5.7k30p 4k60p 2k240p Apple ProRes RAW

4k30p CDNG
