  • Nikon Forestry PRO Laser Range Finder
  • Nikon BKA093YA Forestry PRO Laser Range Finder

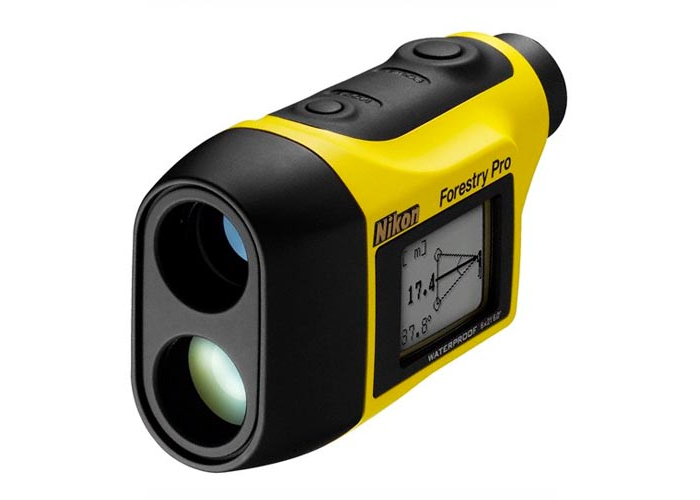

Nikon BKA093YA Forestry PRO Laser Range Finder

Product Code : BKA093YA

List Price: $629.00 On Sale: $488.85 (GST Included) (You save 22.28%)

Warranty Terms & Conditions

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Availability:

Product Info

Product Info

Nikon BKA093YA Forestry PRO Laser Range Finder

We think you should know!

  • Risk Free Purchase Guarantee (bottom of page)
  • Genuine Aussie Nikon Warranty
  • Multiple measurement functions available
  • Interior & exterior result displaying LCD panels
  • Target Priority Switch System
  • First Target Priority Mode
  • multilayer coated 6x monocular
  • Waterproof up to 1 meter
  • High-eyepoint design
  • 10-500m/ 11-550m Measurement range

OVERVIEW

The Forestry Pro is the enhanced model of the Forestry 550 Laser Rangefinder. This widely used and praised forestry industry specific laser rangefinder is now equipped with three-point measurement capability to meet market demands. This newly added function enables a user to obtain the height of a tree even when the top or base of a tree is blocked by branches or bushes, preventing the use of conventional separation measurement where the laser beam is required to reach those points.

FEATURES

External display

1. Measurement unit (m/yd./ft.)
2. Height
3. Actual (linear) Distance
4. Horizontal Distance
5. Angle (º)

Measurement example (Three-point measurement: height between two points)



When three-point measurement is achieved, the height between points 2 and 3 is displayed on the internal LCD with Hor Hgt+Hgt2 (solid), and Hgt(2) and Ang(2) are shown on the external LCD. Points 2 and 3 can be reversed.

Measurement example (two-point height measurement)



When the measurement is successful, you see the height from the base to the top displayed on the internal LCD with Hgt + Hgt2 (solid).
For more information, refer to the external LCD.
"Base" and "Top" can be switched.

FEATURE OVERVIEW

  • In addition to actual distance, horizontal distance, height, angle and vertical separation (difference in height between two targets) measurement functions, three-point measurement (height between two points) is available
  • The results are displayed on both internal and external LCD panels. The external panel displays all results simultaneously.
  • Two measurement modes (Target Priority Switch System) are available:
    First Target Priority Mode displays the range to the nearest target taken from multiple results obtained with a single measurement.
    Distant Target Priority Mode displays the range to the farthest target taken from multiple results obtained with a single measurement – especially useful for forestry and hunting.
  • High-quality 6x monocular with multilayer coating produces bright images.
  • Waterproof (up to 1 meter for 10 minutes) but not for underwater usage. The battery chamber is water resistant.
  • High-eyepoint design allows easy viewing even with eyeglasses.
  • Capable of measuring different distances in succession, for up to 20 seconds, when the button is held down.
  • Measurement range: 10-500 m/11-550 yd./33-999 ft.
  • Display in feet as well as metres and yards is available with this model.





Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via Nikon Australia and enjoys the FULL benefits of the 'Nikon - 12 Month Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with Nikon Australia directly.

We are an AUTHORISED Australian retailer for Nikon Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

Measurement range
Distance:10-500m/11-550 yd./33-999 ft.(*999 ft.: 304.5m/333 yd.)
Angle: ±89º

Distance display (Increment)

[Internal Display]

Act (Actual Distance):
every 0.5m/yd., 1 ft. (shorter than 100m/yd./ft.)
every 1m/yd./ft. (100m/yd./ft. and over)

Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft. (shorter than 100m/yd./ft.)
every 1m/yd./ft. (100m/yd./ft. and over)

Ang (Angle):
every 0.1º (less than 10º)
every 1º (10º and over)
*Downward angle from the horizontal line: with display "-"

[External Display]

Act (Actual Distance):
every 0.5m/yd., 1 ft.

Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft.

Ang (Angle):
every 0.1º

Accuracy* (actual distance)
±1m/yd. (shorter than 300m/yd./900 ft.)
±0.6% (300m/yd./900 ft. and over)

Finder

Magnification (x)
6

Effective objective diameter (mm)
21

Actual field of view (º)
6.0

Exit pupil (mm)
3.5

Eye relief (mm)
18.2

Dimensions (LxHxW) (mm)
130x69x45

Weight (g) (excluding battery)
210

Power source
CR2 lithium battery x 1 (DC3V)
Auto power shutoff function equipped (after 30 sec.)

Laser classification
IEC60825-1: Class 1M/Laser Product

Electromagnetic compatibility
FCC Part15 SubPartB class B, EU: EMC directive, AS/NZS, VCCI classB, CU TR 020

Environment
RoHS, WEEE





In The Box

What's Included?

  • Nikon BKA093YA Forestry PRO Laser Range Finder
