  • JL Audio HD900/5 HD 5 Channel Amplifier
  • JL Audio HD900/5 HD 5 Channel Amplifier
  • JL Audio HD900/5 HD 5 Channel Amplifier
  • JL Audio HD900/5 HD 5 Channel Amplifier

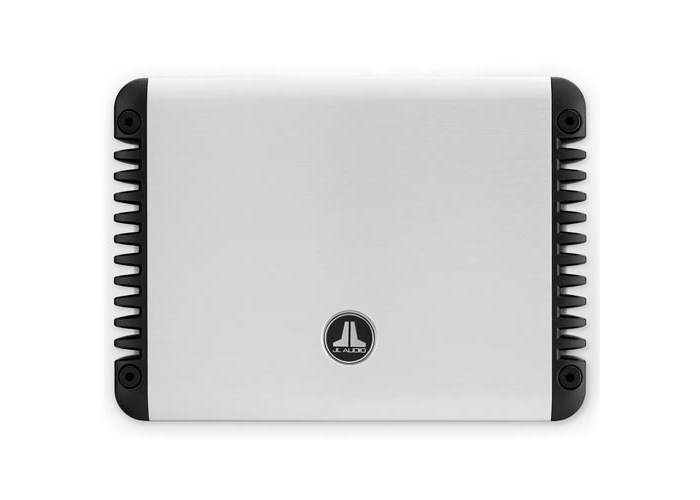

JL Audio HD900/5 HD 5 Channel Amplifier

Product Code : HD9005

List Price: $999.00 On Sale: $798.85 (GST Included) (You save 20.04%)

Warranty Terms & Conditions

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Expected Soon

Product Info

Product Info

JL Audio HD750/1 HD Mono Block Amplifier

We Think YOU Should Know

  • 12 Month JL Audio Australian Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • Class D 5 Channel Amplifier
  • 100 W x 4 + 500 W x 1
  • 4 Ohms
  • RIPS System
  • Brushed aluminum finish with black powder-coated cast alloy heat sinks

5-Channel Class D System Amplifier, 100 W x 4 + 500 W x 1
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.

While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!

Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.



Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.

We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 Ω 100 W RMS x 4
Main Channels @ 3 Ω 75 W RMS x 4
Main Channels @ 2 Ω 75 W RMS x 4
Main Channels @ 1.5 Ω 75 W RMS x 4
Main Channels - Bridged @ 8 Ω 200 W RMS x 2
Main Channels - Bridged @ 4 Ω 150 W RMS x 2
Subwoofer Channel @ 4 Ω 500 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 500 W RMS x 1
Subwoofer Channel @ 1.5 Ω 500 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ω 100 W RMS x 4
Main Channels @ 3 Ω 75 W RMS x 4
Main Channels @ 2 Ω 75 W RMS x 4
Main Channels @ 1.5 Ω 75 W RMS x 4
Main Channels - Bridged @ 8 Ω 200 W RMS x 2
Main Channels - Bridged @ 4 Ω 150 W RMS x 2
Subwoofer Channel @ 4 Ω 500 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 500 W RMS x 1
Subwoofer Channel @ 1.5 Ω 500 W RMS x 1

General Specifications

Frequency Response (Main Channels) 12 Hz - 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz - 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >300 / 50 Hz
Damping Factor @ 2 Ω >150 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 5 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Modes: Channels 1 & 2 (front) High-Pass only
Filter Slope (dB/Octave): Channels 1 & 2 (front) 12 dB or 24 dB
Filter Frequency Range: Channels 1 & 2 (front) 50-500 Hz
Filter Modes: Channels 3 & 4 (rear) High-Pass only
Filter Slope (dB/Octave): Channels 3 & 4 (rear) 12 dB or 24 dB
Filter Frequency Range: Channels 3&4 50-500 Hz
Filter Modes: Subwoofer Channel Low-Pass only
Filter Slope (dB/Octave): Subwoofer Channel 12 dB or 24 dB
Filter Frequency Range: Subwoofer Channel 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filters Defeatable? Yes
Infrasonic Filter: Subwoofer Channel 30 Hz, Defeatable
Remote Level Control Optional (HD-RLC)
Remote Level Modes Sub Ch. only
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A

Physical Specifications

Table_Image
Height (H) 1.93 in / 49 mm
Width (W) 10.74 in / 273 mm
Depth (D) 8.29 in / 211 mm
Net Weight 6.85 lb / 3.11 kg
In The Box

What's Included?

  • JL Audio HD900/5 HD 5 Channel Amplifier
