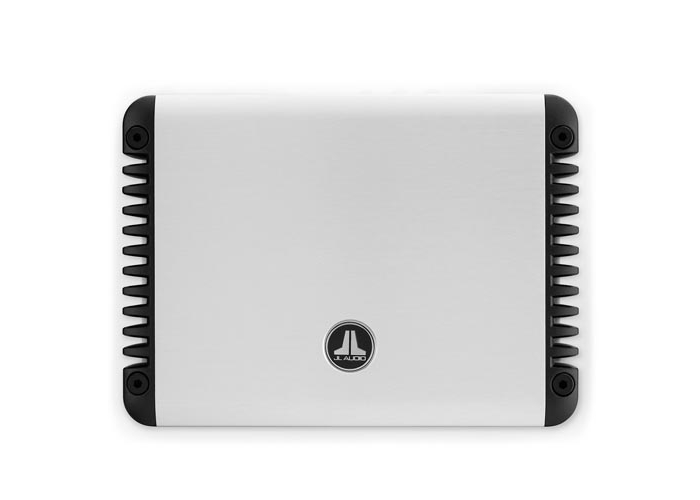

JL Audio HD750/1 HD Mono Block Amplifier

Product Code : HD7501

List Price: $699.00 On Sale: $628.85 (GST Included) (You save 10.04%)

Warranty Terms & Conditions

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Availability:

Product Info

Product Info

JL Audio HD750/1 HD Mono Block Amplifier

We Think YOU Should Know

  • 12 Month JL Audio Australian Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • 750 watts RMS
  • 4 Ohms
  • RIPS System
  • Brushed aluminum finish with black powder-coated cast alloy heat sinks

“Small” is not the real story here.
Making an amplifier small is great, of course... but not if power and sound quality are sacrificed.

This is why our engineering team focused on achieving world-class fidelity first, and then on making our HD amplifiers amazingly powerful, efficient and small. These efforts led to a remarkable switching amplifier technology called Single Cycle Control™, which allows all of these goals to be achieved.

This exclusive core amplifier technology is mated to our regulated, intelligent power supply (R.I.P.S.), advanced thermal management systems and a full complement of studio-grade processing features to put the all-new HD amplifiers in a performance class all their own.

We invite you to sonically compare the HD amplifiers to any amplifier, at any price... We think you will quickly discover that all the old amplifier compromises have suddenly vanished.

How small and how powerful?
The HD600/4 four-channel delivers twice the power of the much larger 4-channel Slash v2 amp in the background!

Single Cycle Control™
Patented Single Cycle Control™ switching technology corrects output in each and every switching cycle (over 400,000 times per second) for pristine power delivery.

R.I.P.S. System™
The remarkable R.I.P.S. System™ ensures consistent power delivery over a wide range of battery voltages and load impedances.

Studio-Grade Signal Processing
A full complement of expertly executed signal processing features make HD's flexible in application and a joy to tune in a variety of system designs.

Differential-Balanced Inputs
Greatly reduce noise and provide compatibility with a wide range of sources, including most OEM systems.

Advanced Rollback Protection and RealSink™
Real, cast aluminum finned heat sinks and our "never-quit" rollback circuitry eliminate annoying thermal shutdown events.

Mounting Options
HD Amplifiers have two mounting options to ease in installation and can also be stacked with an optional stacking kit.



Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.

We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 750 W RMS x 1
@ 3 Ω 750 W RMS x 1
@ 2 Ω 750 W RMS x 1
@ 1.5 Ω 750 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 750 W RMS x 1
@ 3 Ω 750 W RMS x 1
@ 2 Ω 750 W RMS x 1
@ 1.5 Ω 750 W RMS x 1

General Specifications

Frequency Response 6 Hz - 8 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >500 / 50 Hz
Damping Factor @ 2 Ω >250 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Modes Low-Pass or High-Pass
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeatable? Yes
Infrasonic Filter 30 Hz, defeatable
Bass Boost EQ No
Output Polarity Switch Yes
Remote Subwoofer Level Control Optional (HD-RLC)
Remote Bass EQ Boost Control No
Pass-Through Preamp Output Buffered

Physical Specifications

Table_Image
Height (H) 1.93 in / 49 mm
Width (W) 10.74 in / 273 mm
Depth (D) 8.29 in / 211 mm
Net Weight 6.6 lb / 2.99 kg
In The Box

What's Included?

  • JL Audio HD750/1 HD Mono Block Amplifier
