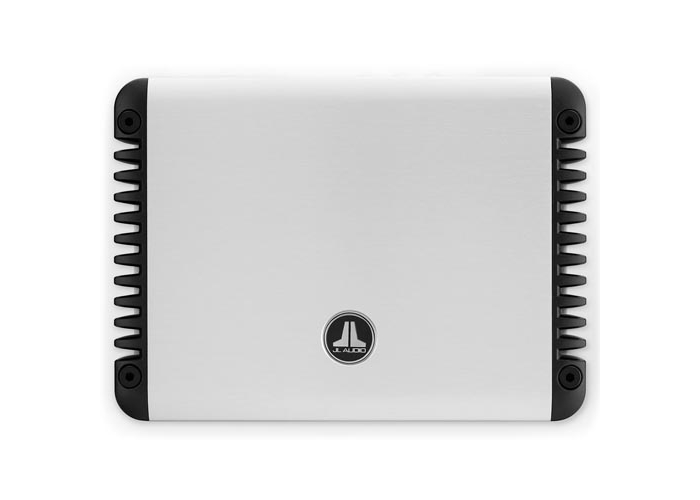

JL Audio HD600/4 HD 4 Channel Amplifier
We Think YOU Should Know
“Small” is not the real story here.
- 12 Month JL Audio Australian Warranty
- Risk Free Purchase Guarantee (bottom of page)
- Class D 4 channel full range amplifier
- 150 W RMS x 4 @ 1.5 ohm-4 ohm (11V-14.5V)
- 300 W RMS x 2 @ 3 ohm-8 ohm (11V-14.5V) (Bridge)
Making an amplifier small is great, of course... but not if power and sound quality are sacrificed.
This is why our engineering team focused on achieving world-class fidelity first, and then on making our HD amplifiers amazingly powerful, efficient and small. These efforts led to a remarkable switching amplifier technology called Single Cycle Control™, which allows all of these goals to be achieved.
This exclusive core amplifier technology is mated to our regulated, intelligent power supply (R.I.P.S.), advanced thermal management systems and a full complement of studio-grade processing features to put the all-new HD amplifiers in a performance class all their own.
We invite you to sonically compare the HD amplifiers to any amplifier, at any price... We think you will quickly discover that all the old amplifier compromises have suddenly vanished.
How small and how powerful?
The HD600/4 four-channel delivers twice the power of the much larger 4-channel Slash v2 amp in the background!
Single Cycle Control™
Patented Single Cycle Control™ switching technology corrects output in each and every switching cycle (over 400,000 times per second) for pristine power delivery.
The remarkable R.I.P.S. System™ ensures consistent power delivery over a wide range of battery voltages and load impedances.
Studio-Grade Signal Processing
A full complement of expertly executed signal processing features make HD's flexible in application and a joy to tune in a variety of system designs.
Greatly reduce noise and provide compatibility with a wide range of sources, including most OEM systems.
Advanced Rollback Protection and RealSink™
Real, cast aluminum finned heat sinks and our "never-quit" rollback circuitry eliminate annoying thermal shutdown events.
HD Amplifiers have two mounting options to ease in installation and can also be stacked with an optional stacking kit.
Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.
We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.
This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.
- Tech Specs
Technical SpecificationsHD600/4 Class D Four-Channel Full-Range Amplifier Features:
HD600/4 Description: Class D Four-Channel Full-Range Amplifier Patented Technology: Single Cycle Control™ (U.S. Patent #6,084,450*) Differential-Balanced Input Topology: 2 pairs of inputs On-board Crossover: State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley, Low-Pass or High-Pass for each pair of channels Speaker output connections: Accept up to 12 AWG wire +12V and Ground connections: Accept up to 4 AWG wire Notes: R.I.P.S. Regulated, Intelligent Power Supply, RealSink™ Heat-Management System,
*Patented technology used under exclusive license for mobile audio from PowerPhysics, Inc. - Newport Beach, CA
HD600/4 Class D Four-Channel Full-Range Amplifier Specifications:
HD600/4 Rated Power (4 Channel Mode): 150 W RMS x 4 @ 1.5 ohm-4 ohm (11V-14.5V) Rated Power (Bridged to 2 Channel): 300 W RMS x 2 @ 3 ohm-8 ohm (11V-14.5V) THD at Rated Power: <0.03% @ 4 ohm per ch. S/N Ratio: >110 dB below rated power
(A-weighted, 20 Hz - 20 kHz noise bandwidth)
Frequency Response: 6 Hz - 30 kHz (+0, -1dB) Damping Factor: >300 @ 4 ohm per ch. / 50 Hz
>150 @ 2 ohm per ch. / 50 Hz
Input Range: Switchable from 200mV-2V RMS to 800mV-8V RMS Dimensions (L x W x H): 10.74 in. x 8.29 in. x 1.93 in.
273 mm x 211 mm x 49 mm
(Width Measurement Includes Plugs)
- In The Box
- JL Audio HD600/4 HD 4 Channel Amplifier
