  • JL Audio HD1200/1 HD Mono Block Amplifier
  • JL Audio HD1200/1 HD Mono Block Amplifier
  • JL Audio HD1200/1 HD Mono Block Amplifier
  • JL Audio HD1200/1 HD Mono Block Amplifier

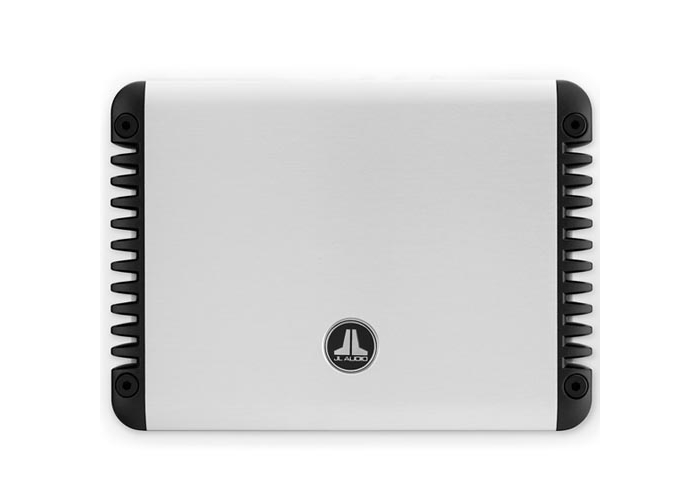

JL Audio HD1200/1 HD Mono Block Amplifier

Product Code : HD12001

List Price: $949.00 On Sale: $798.85 (GST Included) (You save 15.82%)

Warranty Terms & Conditions

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Expected Soon

Product Info

Product Info

JL Audio HD1200/1 HD Mono Block Amplifier

We Think YOU Should Know

  • 12 Month JL Audio Australian Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • 1200 watts RMS
  • 4 Ohms
  • RIPS System
  • Brushed aluminum finish with black powder-coated cast alloy heat sinks

Monoblock Class D Wide-Range Amplifier, 1200 W x 1 @ 1.5-4 Ω
Our most power amplifier ever employs our advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.



Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.

We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

Rated Continuous (RMS) Power @ 14.4 V

@ 4 Ω 1200 W RMS x 1
@ 3 Ω 1200 W RMS x 1
@ 2 Ω 1200 W RMS x 1
@ 1.5 Ω 1200 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 Ω 1200 W RMS x 1
@ 3 Ω 1200 W RMS x 1
@ 2 Ω 1200 W RMS x 1
@ 1.5 Ω 1200 W RMS x 1

General Specifications

Frequency Response 6 Hz - 8 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >500 / 50 Hz
Damping Factor @ 2 Ω >250 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 100 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Modes Low-Pass or High-Pass
Filter Slope (dB/Octave) 12 dB or 24 dB
Filter Frequency Range 50-500 Hz
Detented, Calibrated Filter Freq. Potentiometer Yes
Filter Defeatable? Yes
Infrasonic Filter 30 Hz, defeatable
Bass Boost EQ No
Output Polarity Switch Yes
Remote Subwoofer Level Control Optional (HD-RLC)
Remote Bass EQ Boost Control No
Pass-Through Preamp Output Buffered

Physical Specifications

Height (H) 1.93 in / 49 mm
Width (W) 10.74 in / 273 mm
Depth (D) 8.29 in / 211 mm
Net Weight 6.6 lb / 2.99 kg
In The Box

What's Included?

  • JL Audio HD1200/1 HD Mono Block Amplifier
