JL Audio C3-600 6" Convertible Component System
- Product Info

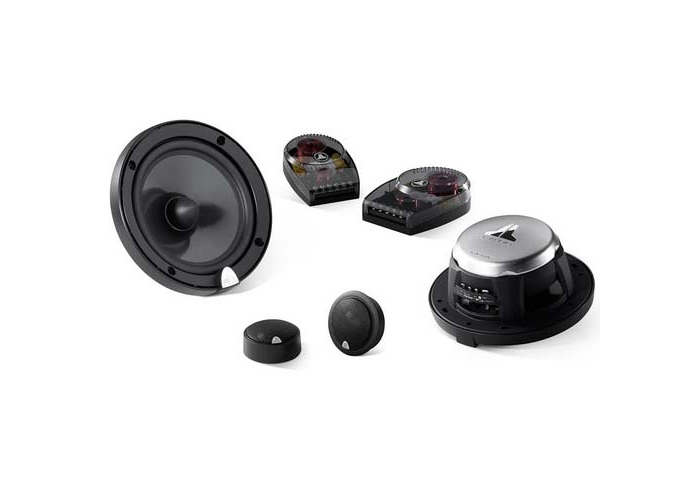

JL Audio C3-600 6" Convertible Component System
We Think YOU Should Know
- 12 Month JL Audio Australian Warranty
- Risk Free Purchase Guarantee (bottom of page)
- 2 way convertible component
- 225 watts peak power
- 4 Ohms Impedance
- 50 Hz - 25 KHz ± 3 dB
C3 Convertible Component Systems
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the new Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio quality in each application.
C3's are all new from the ground up and deploy JL Audio's full suite of technology advancements and patents to deliver unsurpassed value, performance and reliability.
The C3 woofers are 100% new designs aimed at raising the bar for midbass performance, dynamic stability and fidelity of response.
C3 woofers feature oversized, 1.2-inch diameter woofer voice coils to deliver superior power handling, reduced dynamic compression and more distortion-free output. Long coil winding lengths create a very wide dynamic envelope in which linear behavior is maintained. JL Audio's patented Elevated Frame Cooling technology allows air to flow directly over the top-plate and onto the voice coil windings during operation. These features further reduce distortion and improve clean output capabilities.
Balancing the entire motor system is JL Audio's DMA-optimization process, in which we apply powerful computer modeling systems to refine the complex behavior of the motor system under power. (This is the same motor design approach that gives our subwoofer drivers their special edge.)
The C3 woofer cones have been carefully shaped to control response and reduce undesirable breakup characteristics. High-grade butyl rubber surrounds and Conex® spiders ensure years of reliable, high-fidelity performance.
In each C3 woofer design, the motor and moving assemblies are aligned and supported by an injection-molded composite basket (frames) that delivers exceptional rigidity while also permitting architectural features that aid in alignment during assembly. This ensures assembly precision and unit-to-unit consistency, which are critical to maintaining the C3's tight acoustic tolerances.
The C3 tweeter is a true, edge-driven 1-inch (25mm) silk dome that excels on or off axis and offers very smooth and flat frequency response to well beyond 20 kHz. Silk is an ideal tweeter diaphragm material thanks to its light weight, strength, inherently good damping characteristics and environmental stability. These benefits combine to deliver very good efficiency, smooth response and sparkling high frequency detail without the harshness common in many competitive products.
Driving this silk dome is a powerful motor using high-temperature grade neodymium and ferroluid-cooling for superior efficiency and long-term fidelity.
Each C3 tweeter is built onto a carrier that can be mounted with a simple twist into a flush or surface mount fixture (for separate mounting applications), or onto the woofer's pole piece, when used as a coaxial.
Each C3 System includes specifically-designed, true 2-way outboard crossovers, precisely optimized to deliver smooth, predictable in-car response.
The C3 crossover networks feature premium Mylar® capacitors, air-core inductors and precision resistors. All C3 crossover component parts are held to less than 5% tolerance. This attention to detail and parts quality combines to give you consistent performance at all power levels.
The design of the C3 crossover networks is simple in topology (1st order low-pass / 2nd order high-pass), but highly sophisticated in implementation. The networks offer adjustments for mid-range presence (three increments), plus four adjustable tweeter levels. This flexibility allows you (or your installer) to account for vehicle acoustics, tweeter placement as well subjective factors.
Getting your C3's dialed in couldn't be simpler.
Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.
We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.
This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.
- Tech Specs
Peak Music Power
89.5 dB @ 1 W / 1 m
System Frequency Response
50 Hz - 25 KHz ± 3 dB
Woofer Physical Specifications
Frame Outer Diameter (A)
6.21 in. / 157.7 mm
Grille Tray Outer Diameter (B)
6.46 in. / 164.1 mm
Rear Cover Outer Diameter (C)
4.08 in. / 103.6 mm
Frontal Coaxial Tweeter Protrusion* (D)
0.81 in. / 20.6 mm
Frontal Grille Protrusion** (E)
1.03 in. / 26.2 mm
Mounting Hole Diameter (F)
5.00 in. / 127 mm
Mounting Depth (G)
2.49 in. / 63 mm
*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface
Tweeter Physical Specifications
Flush Mount Fixture Diameter (A1)
2.12 in / 54 mm
Surface Mount Fixture Diameter (A2)
1.93 in / 49 mm
Flush Mount Mounting Hole Diameter (B)
1.875 in / 48 mm
Flush Mount Fixture Mounting Depth (C)
0.71 in / 18 mm
Flush Mount Tweeter Frontal Protrusion (D1)
0.32 in / 8 mm
Surface Mount Tweeter Frontal Protrusion (D2)
0.95 in / 24 mm
Crossover Physical Specifications
4.72 in / 120 mm
3.36 in / 85 mm
- In The Box
- JL Audio C3-600 6" Convertible Component System
