  • JL Audio 10W3V3-4 10" 500w Car Subwoofer
  • JL Audio 10W3V3-4 10" 500w Car Subwoofer
  • JL Audio 10W3V3-4 10" 500w Car Subwoofer

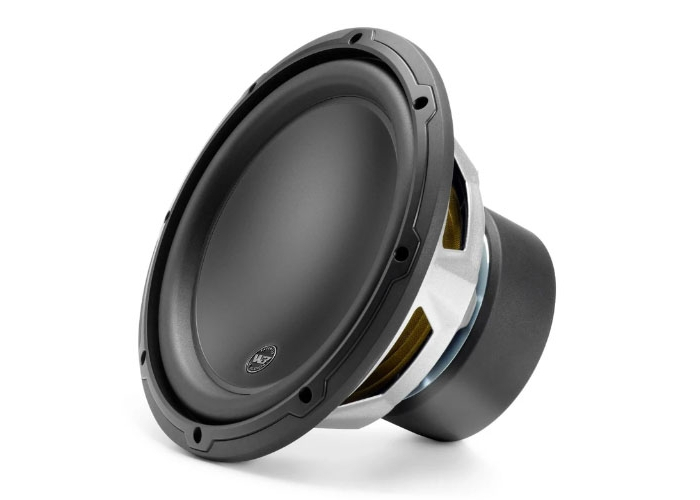

JL Audio 10W3V3-4 10" 500w Car Subwoofer

Product Code : 10W3V34

List Price: $439.00 On Sale: $388.85 (GST Included) (You save 11.42%)

Warranty Terms & Conditions

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Expected Soon

Product Info

Product Info

JL Audio 10W3V3-4 10" 500w Car Subwoofer

We Think YOU Should Know

  • 12 Month JL Audio Australian Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • 500w RMS
  • 4 Ohms
  • Single 4Ω Voice Coil

This acclaimed subwoofer driver strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability.

The 10W3v3-4 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.



Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.

We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

General Specifications

Continuous Power Handling (RMS) 500 W
Recommended RMS Amplifier Power 150 - 500 W
Nominal Impedance (Znom) 4 Ω

Physical Specifications

Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.5 in / 267 mm
Mounting Hole Diameter (B) 9.0625 in / 230 mm
Bolt Hole Circle (C) 9.7 in / 246.5 mm
Magnet Diameter (D) 5.25 in / 133 mm
Mounting Depth (E) 5.93 in / 151 mm
Driver Displacement 0.049 cu ft / 1.39 L
Net Weight 12.25 lb / 5.56 kg

Parameters

Free Air Resonance (Fs) 31.49 Hz
Electrical “Q” (Qes) 0.523
Mechanical “Q” (Qms) 7.017
Total Speaker “Q” (Qts) 0.485
Equivalent Compliance (Vas) 1.138 cu ft / 32.23 liters
One-Way Linear Excursion (Xmax)* 0.550 in / 14.0 mm
Reference Efficiency (no) 0.19%
Efficiency (1 W / 1 m)** 84.87 dB SPL
Effective Piston Area (Sd) 53.475 sq in / 0.0345 sq m
DC Resistance (Re) 3.567 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Sealed Enclosure Specifications

Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 0.625 cu ft / 17.7 L
External Width (W) 17.875 in / 454 mm
External Height (H) 11 in / 279 mm
External Depth (D) 9 in / 229 mm
F3 46.9 Hz
Fc 52.9 Hz
Qtc 0.818
Enclosure Notes

* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice

Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Ported Enclosure Specifications

Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 1.125 cu ft / 31.9 L
External Width (W) 23 in / 584 mm
External Height (H) 12 in / 305 mm
External Depth (D) 13 in / 330 mm
Internal Slot Port Width (SW) 1.25 in / 32 mm
Internal Slot Port Height (SH) 10.5 in / 267 mm
Internal Slot Port Depth (SD) 28.625 in / 727 mm
Port Extension Length (EL) 15 in / 381 mm
Tune to 31.8 Hz
F3 31.7 Hz
Enclosure Notes

* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice

Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

In The Box

What's Included?

  • JL Audio 10W3V3-4 10" 500w Car Subwoofer
