GME TX3520S 477MHz UHF Compact CB Radio
How To Build A Bundle
The following accessories can be bundled with your purchase by checking the green ‘Include with Product’ button. You can add as many items to your order as you require and then simply ‘Add to Cart’ to complete order.
- Product Info

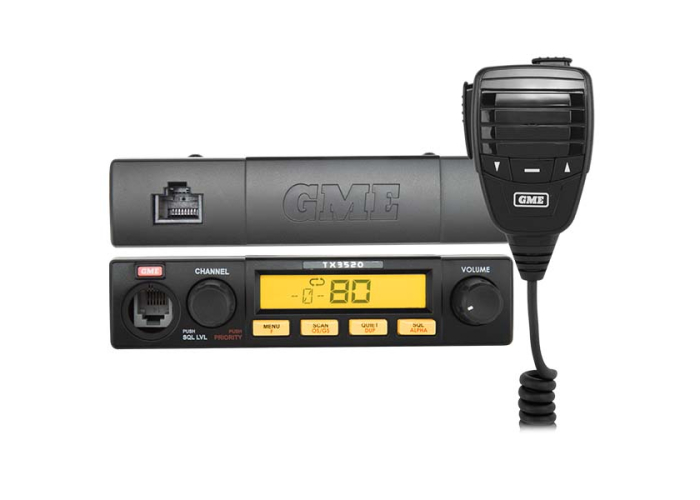

GME TX3520S 477MHz UHF Compact CB Radio
We Think You Should Know
- Supplied with 5 Year Australian GME Full Warranty
- 80 Channel
- User adjustable full spectrum LCD backlight
- Advanced signal management
- 95 user programmable extra receive channels (403-520 MHz)
- Remote head display
- Australian design and manufacture
The TX3520 displays the same rugged construction, comprehensive feature set and renowned GME reliability as the TX3510S. The remote head allows for an aesthetically pleasing, easy installation, especially when space is limited, which is often the case in today’s modern vehicles. The TX3520S is now also equipped with ScanSuite to enable uninterrupted communications even on congested channels.
Genuine GME Retailer
NO Frills is a fully accredited GME Retailer authorised to sell genuine authentic GME UHF Products.
Declaration of Conformity and Warranty
This product is supplied directly from the Australian GME Distributor and is offered with a full Australian 5 Year MANUFACTURERS warranty. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product. You are also have the option of speaking with GME Australia should you want to.
NO Frills Electronics IS an Authorised Australian GME UHF Retailer.
This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.
- Tech Specs
General Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX 476.425-477.4125 MHz Number of Channels 80 Channel Spacing 12.5 kHz Operation Mode Simplex or half Duplex with repeater talk around. Scanning Speed 50 ms per channel (20 channels per second). Antenna Impedance 50 Ohms nominal Nominal Battery Voltage 12 volts DC Operating Voltage Range 10-16 volts DC Battery Polarity Negative Earth Standard Test Voltage 13.8 volts DC Overvoltage Protection 30 volts DC maximum. At 18 volts DC the channel display flashes ‘Hi DC’ for 5 seconds on receive. The RF power is reduced and TX flashes on transmit. Reverse Voltage Protection Diode Crowbar Overcurrent Protection In-line 2 amp fuse Operating Temperature -10°C to 60°C Transmitter RF Output 5 watts Spurious Emission < - 70 dBc Frequency Error < ± 1.5 kHz Modulation FM Maximum Deviation < ± 2.5 kHz at + 20 dB AF limiting. Transmit Frequency Response + 6 dB per octave 300 Hz to 3 kHz + 1-3 dB. Demodulated Audio Signal to Noise > 45 dB unweighted Current Consumption 1.7 amps with 50 Ohms termination. Receiver Intermediate Frequencies 38.85 MHz Sensitivity - 122 dBm for 12 dB SINAD unweighted Selectivity - 6 dB at + 3.5 kHz ‑ 60 dB at ± 12.5 kHz Intermodulation Immunity -72 dB Blocking Immunity -98 dB Spurious Response Immunity 70 dB Audio Output Power 3 watts average into 4 Ohms Audio Signal to Noise > 45 dB unweighted Receive Frequency Response ‑ 6 dB/Octave de‑emphasis 300 Hz to 3 kHz + 1-3 dB. Current Consumption < 175 mA muted 750 mA Full volume. Conducted Spurious Emission < - 70 dBm Mechanical Specifications & Connections Dimensions 29 (H) x 128 (L) x 117 (D) mm Weight 450 grams 12 Volt Power Supply Two core cable with bulkhead connector in rear panel. Antenna SO239 Panel Socket External Speaker 3.5 mm Mono Jack Microphone Port 6 Way telephone style with rubber strain relief.
- In The Box
- GME TX3520S 477MHz UHF Compact CB Radio
- Mounting Cradle
- Microphone Clip
- DC Lead
- Screw Pack
- Instruction Manual
