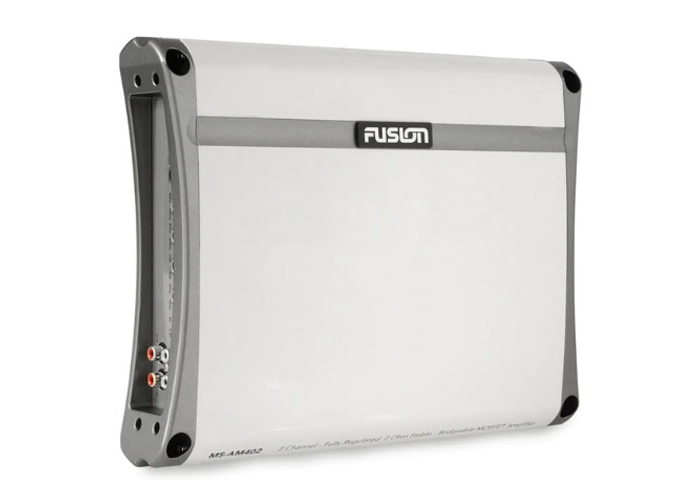

  • Fusion MS-AM402 2-Channel Marine Amplifier
  • Fusion MS-AM402 2-Channel Marine Amplifier
  • Fusion MS-AM402 2-Channel Marine Amplifier
  • Fusion MS-AM402 2-Channel Marine Amplifier

Fusion MS-AM402 2-Channel Marine Amplifier

Product Code : MSAM402

List Price: $249.95 On Sale: $213.85 (GST Included) (You save 14.44%)

Warranty Terms & Conditions

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

Expected Soon

Product Info

Product Info

Fusion MS-AM402 2-Channel Marine Amplifier

Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!

We Think YOU Should Know

  • 12 Month Australian Fusion Audio Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • 2 Ohm Stable MOSFET Amplifier Design
  • Variable Bass Boost 0 - + 18dB
  • Variable  LP and HP Electronics X-OVER @ 18dB/octave
  • 4 Gauge Power and Ground Connections
  • Nickel Plated Audio Input and Output RCA Connections
  • Nickel Plated RCA Output for multi-amp Installations

Features

2-OHM STABLE STEREO
Provides the option of connecting an extra pair of speakers in parallel, 2
per channel at 2-Ohms (A total of 8 speakers).

MARINE GRADE CONNECTIONS
Nickel plated RCA connectors and stainless components improve signal
flow for optimum output

CLASS-AB DESIGN
The 500 Watt 2-Ohm stable (per channel) design ensures clean and
powerful amplification of the input signal, enough to rock the boat.

CONFORMAL COATED CIRCUITRY
Provides added protection from salt air and moisture to ensure maximum
product life.

MARINE GRADE CHASSIS
Stainless steel end and bottom plates provide a stunning finish coupled
with environmental protection.

RCA LINE OUT
A pass through RCA output enables linking of multiple amplifiers for
enhanced system performance





Peace of Mind Purchase & Declaration of Warranty
This product is supplied directly via Fusion Australia and enjoys the FULL benefits of the 'Fusion - 12 Month Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with Fusion Australia directly.

We are a FULLY AUTHORISED Australian retailer for Fusion Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

Signal to Noise
>95dB

Separation
>60dB

Input Sensitivity
300mV - 8V

LP Variable Crossover
40Hz - 160Hz @ 18dB/octave

HP Variable Crossover
40Hz - 600Hz @ 12dB/octave

Variable Bass Boost
0 - + 18dB @ 45Hz

Variable Subsonic Filter
20Hz - 55Hz @ 18dB/octave

Input Impedance
20k Ω

Damping factor
>200

T.H.D
0.05%

Fuse Ratings
1 x 25A

Dimensions(mm)
229 (W) x 296(L) x 53vz(H)

12.6 Volt power output specification
50 Watts RMS x 2 @ 4Ω 1% THD+N
96 Watts RMS x 2 @ 2Ω 1% THD+N
160 Watts RMS x 1 @ 4Ω Bridged 1% THD+N

14.4 Volt power output specification
65 Watts RMS x 2 @ 4Ω 1% THD+N
100 Watts RMS x 2 @ 2Ω 1% THD+N
200 Watts RMS x 1 @ 4Ω Bridged 1% THD+N

In The Box

What's Included?

  • Fusion MS-AM504 4-Channel Marine Amplifier
